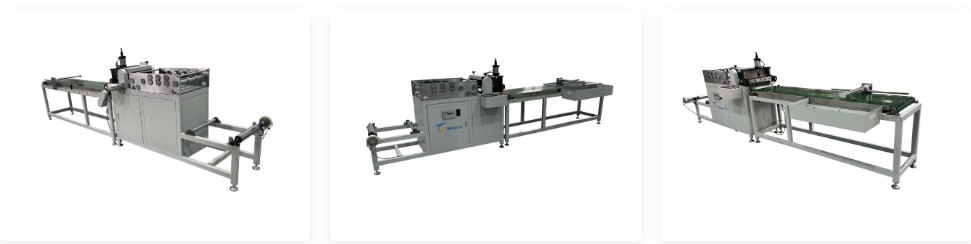

In modern filtration and separation industries, the quality of aluminum foil and paper separators directly affects product performance and reliability. As production volumes increase and tolerance requirements become stricter, manufacturers need machinery that delivers stable corrugation accuracy, repeatable forming results, and high operational efficiency. The Aluminum Foil Corrugating Machine is developed specifically to meet these industrial demands, providing a balanced solution that combines automation, precision control, and ergonomic design.
Optimized Workflow of the Paper Aluminum Filter Making Machine

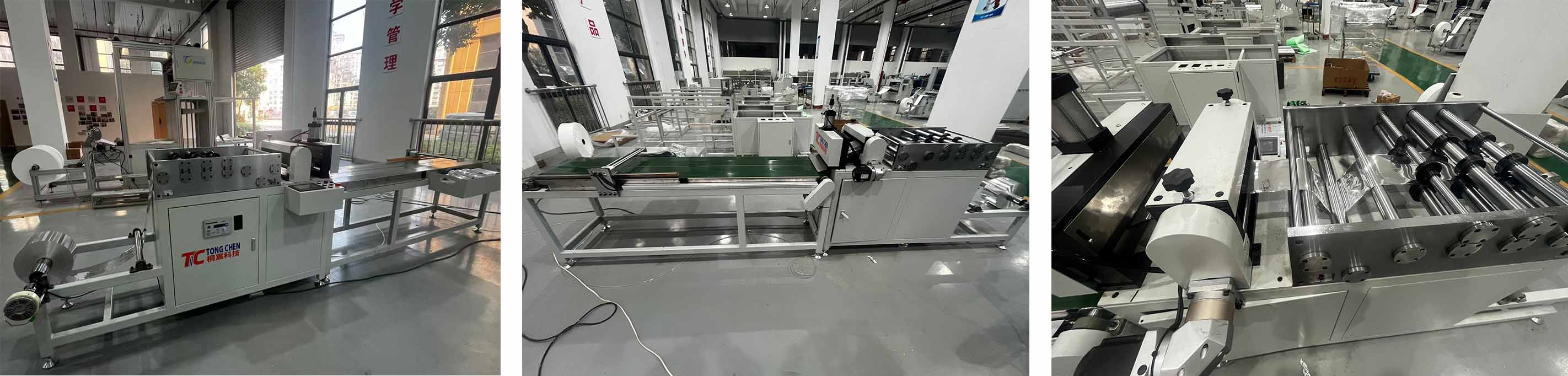

As a professional Paper Aluminum Filter Making Machine, the 350mm system integrates a complete and optimized production workflow. From rolled material feeding to final discharge, each stage is designed to maintain material stability and dimensional accuracy. The workflow includes coiling, tension unwinding, controlled feeding, flanging, corrugation pressing with heat setting, automatic sizing and cutting, and pneumatic discharge.
This fully automated process reduces manual handling and ensures consistent product dimensions. Stable tension control throughout the process prevents deformation of thin aluminum foil or paper, making the machine suitable for long production runs with minimal adjustment requirements.
Stable Material Handling in a Separated Aluminium Foil Paper Machine
The machine also functions as a reliable Separated Aluminium Foil paper Machine, emphasizing stable material handling and separation accuracy. The unwinding section is equipped with a magnetic powder brake and independent motor, allowing constant tension output regardless of roll diameter changes. This ensures straight material feeding during flanging and corrugation.
An adjustable inlet tension section further balances material stress, preventing uneven force distribution. Together, these systems significantly reduce forming defects and improve overall production stability, even when operating at higher speeds.
Technical Strengths of the 350mm Aluminum Foil Paper Corrugating Equipment
The 350mm Aluminum Foil Paper Corrugating Equipment is engineered for flexibility and precision. Replaceable corrugation rollers allow corrugation heights between 3 and 6 mm, while edge widths after pressing can be adjusted from 3 to 10 mm. Pneumatic cutting knives combined with induction sizing deliver accurate and repeatable cutting results.
With a maximum production speed of up to 30 sheets per minute, the machine balances efficiency and quality. Its painted frame improves durability and alignment precision, while the ergonomic layout simplifies maintenance and roll replacement.
As a fully integrated 350mm Aluminum Foil Paper Auto Corrugator, the system combines automatic forming, cutting, and discharge into a compact production unit. The automatic discharge platform uses a pneumatic mechanism to eject finished sheets, simplifying collection and stacking while reducing labor intensity.
Serving as a complete 350mm Aluminum Foil Paper Corrugating Forming Machine, it supports both aluminum foil and paper materials with freely adjustable sizing length. This adaptability makes it suitable for manufacturers seeking reliable, scalable, and consistent corrugation solutions for industrial separator production.
